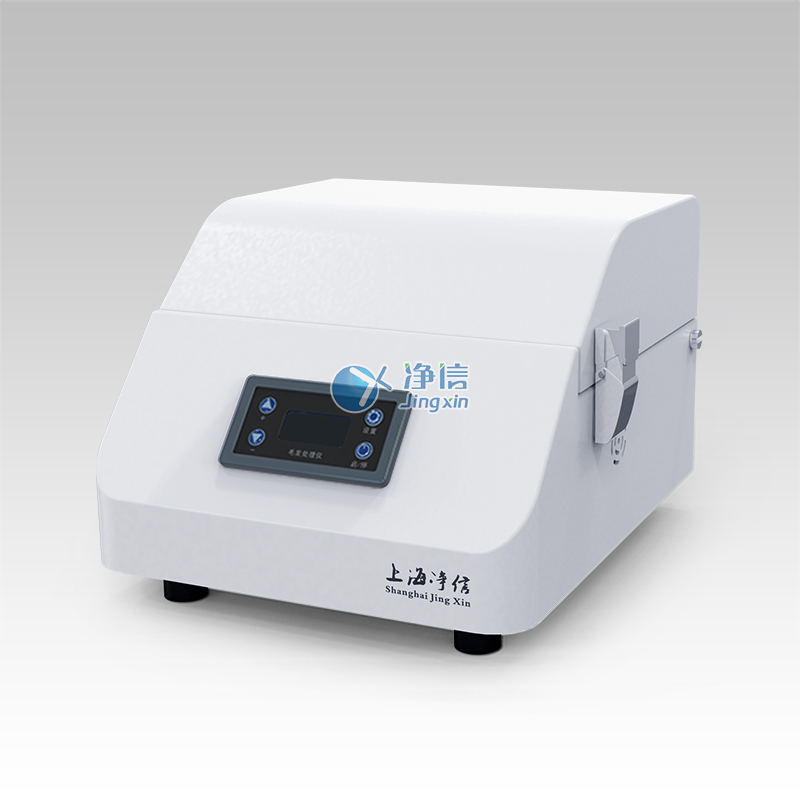

Model：JXMF-03
Brand：Shanghai Jingxin?
Specifications ：Standard
Introduction：The hair treatment instrument is not only suitable for fine crushing and fine grinding of hard, medium-hard and brittle samples, but also suitable for soft, elastic and fibrous materials.
Product Description:
JXMF-03 hair treatment instrument (patented product, counterfeiting must be punished! ZL2019301918739)
Product advantages:
1. Touch screen display, time can be adjusted arbitrarily.
2. The speed can be adjusted arbitrarily every 100 revolutions (2800rpm～6000rpm).
3. The adjustment time and speed parameters have self-memory function.
4. Press the inverted "8" shape to cyclically operate, and the chuck is an effective automatic tightening device.
5. There are two choices of metal clip and plastic clip, can choose according to the experimental conditions.
6. Safety design, when the mask is opened during the working process, the machine stops working to ensure safe operation.
7. In line with ergonomic design.
8. Almost no noise, automatic alarm reminder.
9. Simple operation, easy maintenance, and uniform oscillation.
Main working principle:
The hair treatment instrument is not only suitable for fine crushing and fine grinding of hard, medium-hard and brittle samples, but also suitable for soft, elastic and fibrous materials.
This machine performs three-dimensional vibration in the horizontal direction. The inertia of the grinding balls/beads drives them to hit the sample material on the inner surface of the arc with high energy, so as to achieve the effect of crushing and grinding.
The movement of the adapter can be superimposed with the movement of the inner ball to fully mix the sample. The mixing effect can be further improved by using multiple small-diameter grinding balls.
The use of multiple small-diameter grinding balls during grinding can greatly improve the grinding effect. The huge impact and friction between the ball and the ball can effectively achieve the fragmentation of the sample.
Features:
1. Very powerful stirring, pyrolysis, grinding or homogenization;
2. Fast and efficient;
3. Can do 3 samples at the same time;
4. Compact and small;
5. Compared with hand-held tissue homogenizer, it eliminates cross-contamination.
Machine performance indication:
Main parameters | Parameter range |
Material: | Metal |
Capacity: | 2/5ml |
Voltage | 24V |
Motor Power | 60W |
Grinding time: | 0-9999s adjustable |
Mixing speed: | 2800 rpm～6000 rpm; |
Timing range: | Arbitrarily set according to experimental requirements; |
Noise | ≤55 dB |
Weight: | 4.5kg； |
Dimensions: | 240*180*200 mm |
Hair grinding effect picture:
